DESCRIPTION

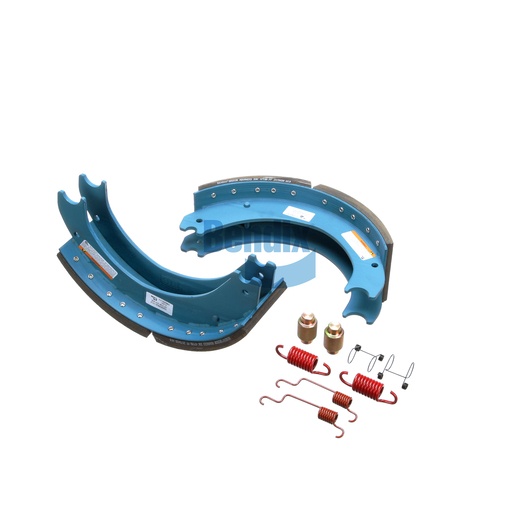

The Brake Shoe Kit is tailored for high-performance braking in heavy-duty applications, featuring advanced friction material BA202R for optimal stopping power. With a drum size of 16.5 inches and a shoe width of 5.0 inches, this kit ensures reliable performance under various loads. The durable stamped steel construction and PermaGuard coating enhance longevity and resistance to wear, making it suitable for demanding conditions. Each kit comes with all necessary hardware for easy installation, ensuring your vehicle's braking system operates effectively. Trust Source One Parts Center for genuine Bendix OEM parts that deliver quality and performance.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Length
406.0 mm (15.98 in)
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA202R (Bendix Advanced - RSD)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.8 lb
