KT4719E2BA231
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

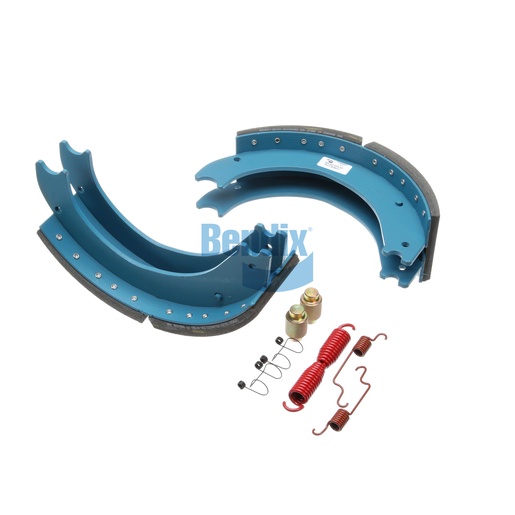

The Bendix Brake Shoe Kit is meticulously crafted to deliver exceptional performance and safety in heavy-duty commercial vehicles. Made from high-quality stamped steel and treated with a PermaGuard coating, these shoes resist wear and corrosion, ensuring longevity and reliability. This kit includes two brake shoes designed for a drum size of Ø 16.5 inches and a shoe width of 5 inches, making it compatible with a wide range of truck models. Featuring Bendix Advanced friction material, it guarantees superior stopping power and performance under various driving conditions. With 16 rivets securing each shoe, you can trust its strength and durability for heavy hauling. Source One Parts Center is the ideal destination for purchasing genuine Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
16
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
23K
Length
406.0 mm (15.98 in)
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA231 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.45 lb
