KT4720QBA202R

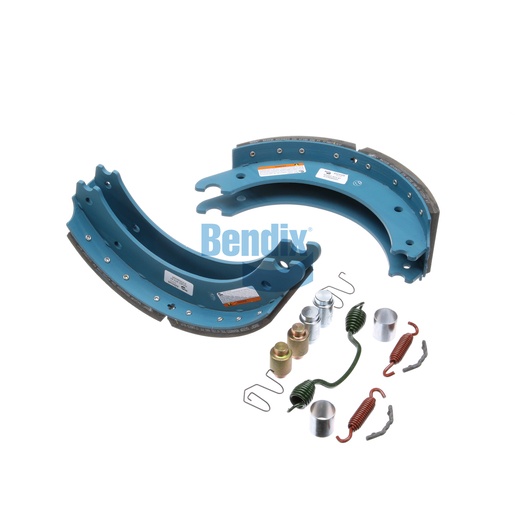

Brake Shoe Kit
Bendix
AVAILABLE
More than 10 are currently available
Ships within 11-13 business days
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your commercial vehicle's braking system with the Bendix Brake Shoe Kit, specifically designed for demanding applications. This kit features two high-quality stamped steel shoes with a PermaGuard coating, offering exceptional resistance to wear and corrosion. With a shoe width of 5.0 inches and a drum size of 16.5 inches, it accommodates a GAWR of 20,000 pounds, ensuring reliable performance even under heavy loads. The kit includes all necessary hardware for easy installation, making maintenance efficient and straightforward. Weighing in at 14.8 kg, this brake shoe kit is engineered for maximum durability and safety. For the best in quality and performance, trust Source One Parts Center for genuine Bendix OEM parts that keep your vehicle running smoothly.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
20K
FMSI
4720
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA202R (Bendix Advanced - RSD)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
32.55 lb
