KT4720QBA233
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

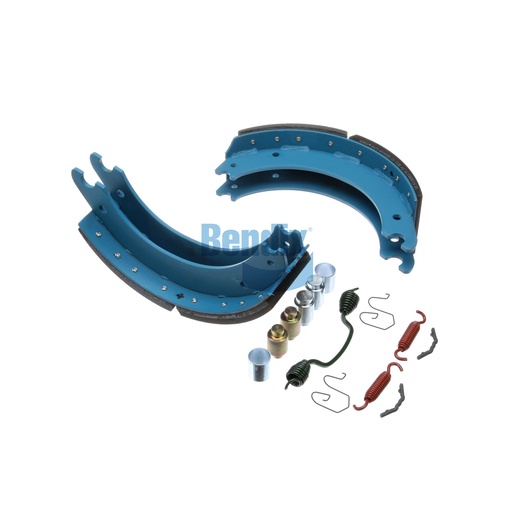

The Bendix Brake Shoe Kit is the perfect solution for maintaining the braking efficiency of your heavy-duty commercial vehicle. Designed for foundation drum brakes, this kit includes two steel shoes coated with PermaGuard, ensuring optimal durability and performance in harsh conditions. With a shoe width of 5.0 inches and compatible with a drum size of 16.5 inches, it supports a GAWR of 23,000 pounds, making it ideal for heavy loads. The kit comes with all necessary hardware for straightforward installation, allowing for quick maintenance without downtime. Weighing 14.7 kg, this brake shoe kit is engineered to provide reliable, consistent braking, enhancing your vehicle's overall safety. Trust Source One Parts Center for genuine Bendix OEM parts, where quality meets excellence.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
23K
FMSI
4720
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
32.47 lb
