KT4725E2420

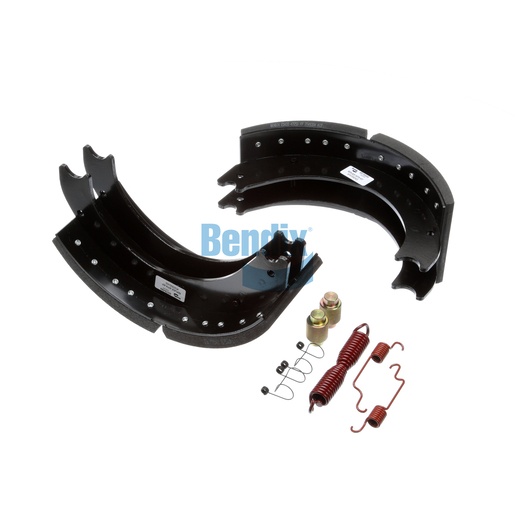

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your commercial vehicle's braking system with the high-performance Brake Shoe Kit from Bendix. Designed with precision for foundation drum brakes, this kit includes two stamped steel brake shoes coated with PermaGuard for enhanced durability and resistance to wear. The shoes come with a friction rating of ES420 and are constructed to fit a drum size of 16.5 inches, ensuring optimal braking power for vehicles with a gross axle weight rating (GAWR) of up to 20,000 lbs. With 14 rivets per shoe, this kit guarantees robust assembly and long-lasting reliability on the road. The complete hardware package included allows for easy installation, making it a perfect choice for fleet maintenance or individual truck repairs. When you choose Source One Parts Center, you are guaranteed to receive genuine Bendix OEM parts, ensuring the best fit and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
14
Shoe Quantity
2
GAWR
20K
FMSI
4725
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Friction
ES420
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
34.7 lb
