KT4725E2920
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

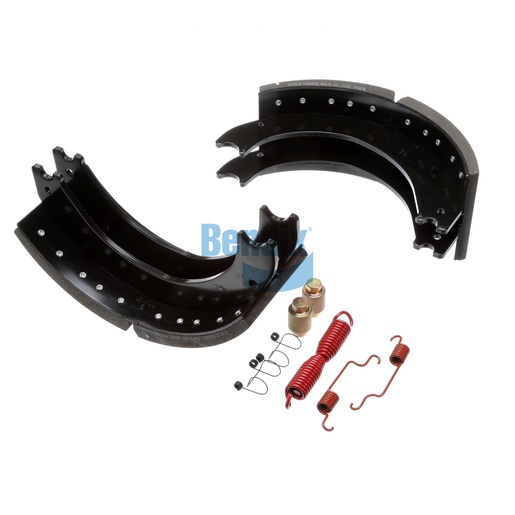

The Bendix Brake Shoe Kit is expertly designed for foundation drum brakes, providing exceptional stopping power and reliability for commercial vehicles. With a net weight of 15.9 kg (35.03 lb), this kit includes all necessary components for a complete brake shoe replacement, ensuring that your braking system performs at its best. The advanced materials and construction techniques used in this kit not only enhance durability but also minimize wear and tear, extending the life of your vehicle's braking system. The complete kit includes hardware, making installation straightforward and efficient. The Bendix Brake Shoe Kit is ideal for fleet operators seeking to maintain safety and performance across their vehicles. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is the optimal choice for ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
14
GAWR
14.6K
Shoe Quantity
2
FMSI
4725
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Friction
BX920 (Bendix RSD)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
35.03 lb
