KT4725E2950
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

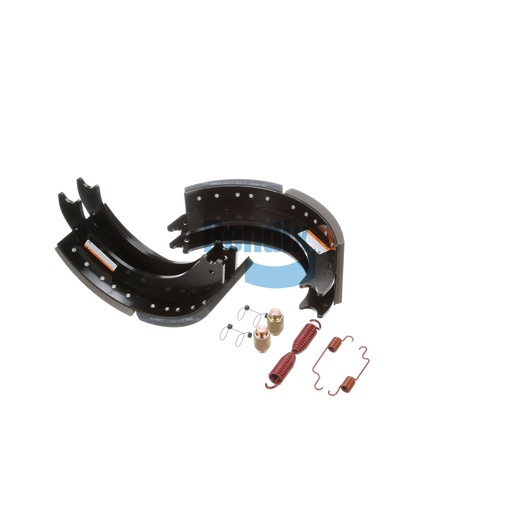

The Bendix Brake Shoe Kit offers an exceptional solution for foundation drum brakes, designed with advanced features to enhance your vehicle's braking performance. This kit includes two stamped steel shoes coated with E-Coat for superior corrosion resistance, ensuring durability in harsh environments. With a Gross Axle Weight Rating (GAWR) of 14.6K and a drum size of Ø 16.5 inches, this kit meets the demands of heavy-duty applications. The advanced friction material ensures consistent braking power, while the included hardware simplifies installation, making it a reliable choice for maintenance professionals. For authentic Bendix parts, trust Source One Parts Center, where you can find the highest quality OEM components tailored for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
14
GAWR
14.6K
Shoe Quantity
2
FMSI
4725
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Friction
BX950 (Bendix RSD)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37 lb
