KT4725E2BA200

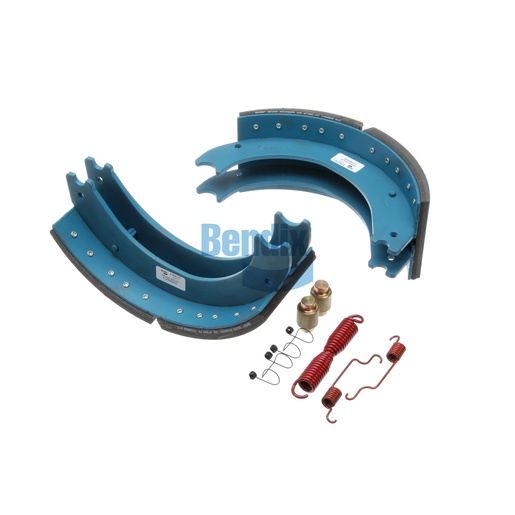

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is meticulously designed to enhance the braking performance of your commercial vehicle, providing exceptional stopping power under heavy loads. This kit includes high-quality shoes crafted with stamped steel and advanced friction materials, ensuring durability and reliability. Weighing 15.8 kg, the kit is engineered for ease of installation, allowing for quick replacements that minimize downtime. The shoes are coated with PermaGuard to resist wear, while the hardware included ensures a complete and hassle-free installation process. With a drum size of 16.5 inches and a shoe width of 6 inches, this kit meets the demanding requirements of commercial applications. For fleet operators seeking the best in performance and safety, Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring your vehicles stay safe and efficient on the road.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Number of Rivets
14
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Length
406.0 mm (15.98 in)
FMSI
4725
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
34.92 lb
