KT4726E2415

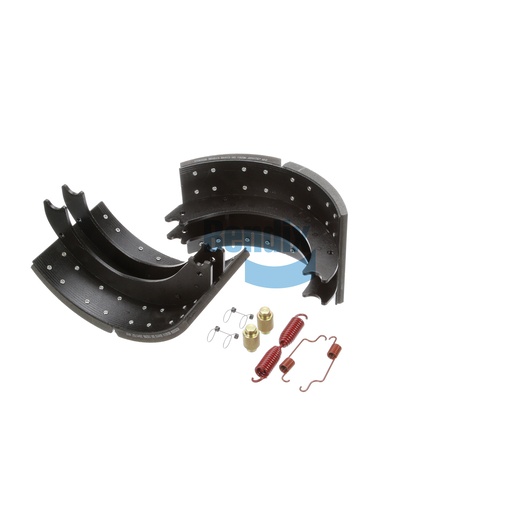

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is engineered for foundation drum brakes, offering top-tier performance and reliability. This kit includes two expertly crafted shoes made from stamped steel and coated with PermaGuard, designed to withstand high-stress conditions while ensuring exceptional durability. With a drum size of Ø 16.5 IN and a shoe width of 8.625 IN, this kit is perfect for various heavy-duty applications. Its advanced friction materials deliver outstanding stopping power while minimizing wear on your braking system. Source One Parts Center provides you with authentic Bendix OEM parts, ensuring that your vehicle operates with the highest level of performance and safety.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Shoe Quantity
2
GAWR
20K
Number of Rivets
32
FMSI
4726
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Friction
BX415
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
44.55 lb
