DESCRIPTION

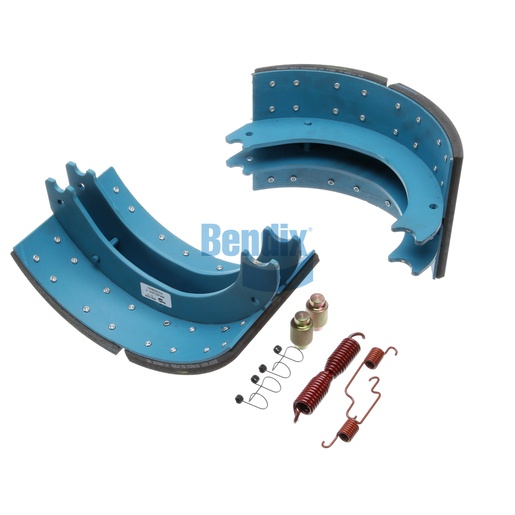

The Bendix Brake Shoe Kit is essential for ensuring optimal braking performance in commercial vehicles. Designed for heavy-duty applications, this kit combines advanced materials and engineering to provide exceptional stopping power and durability. Each component is manufactured to meet or exceed OEM specifications, ensuring reliability and safety on the road. The easy installation process allows for quick maintenance, making it an ideal choice for fleet operators. For those looking for genuine Bendix OEM parts, Source One Parts Center is the best place to find quality products that meet your needs.
SPECIFICATIONS
VMRS
013-012-013: Repair Kit - Brake Shoe & Lining
Width
178.0 mm (7.01 in)
Shoe Quantity
2
Height
200.0 mm (7.87 in)
GAWR
20K
Number of Rivets
32
Length
406.0 mm (15.98 in)
FMSI
4726
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Shoe Coating
PermaGuard
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
42.73 lb
