SB1308EBA230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

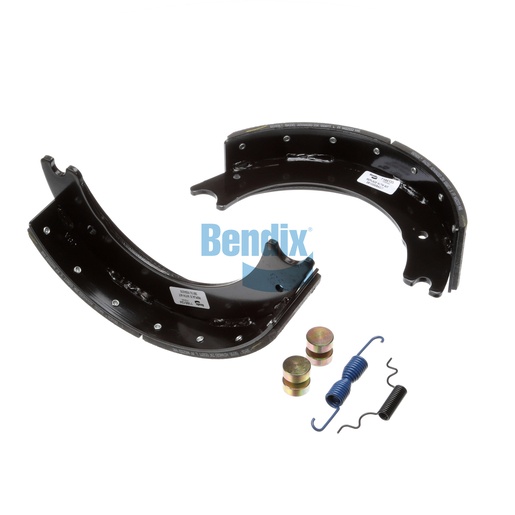

The Bendix brake shoe kit is a vital component for heavy-duty trucks, providing reliable braking performance under demanding conditions. This kit is designed to fit a drum size of 15.0 inches and includes two stamped steel shoes, ensuring durability and effective braking. With an advanced E-coat finish, these shoes are resistant to corrosion and wear, making them ideal for extended usage. The included hardware simplifies installation, allowing for quick replacements. Source One Parts Center is your premier destination for genuine Bendix parts, offering the best quality and service for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
FMSI
1308
Number of Rivets
14
Shoe Quantity
2
GAWR
23K
Shoe Width
4.0 IN
Harmonized System (HS) Code
870830
Friction
BA230 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
17.4 lb
