SB1443EBB230

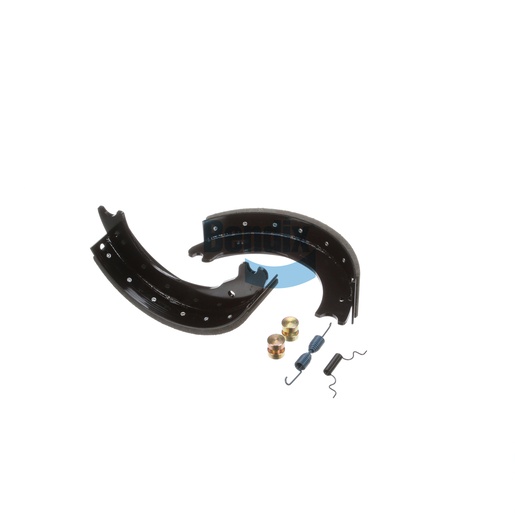

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is designed for heavy-duty commercial trucks, offering exceptional stopping power and durability. Featuring a stamped steel construction with an E-Coat finish, these brake shoes resist corrosion and wear, ensuring long-lasting performance even in the toughest conditions. The kit supports a gross axle weight rating (GAWR) of 23K and is designed for a drum size of 15.0 inches with a shoe width of 4.0 inches, making it suitable for a range of vehicles. Each shoe is equipped with 14 rivets, providing robust structural integrity. All necessary hardware is included for a complete installation, simplifying the maintenance process. For all your Bendix OEM parts needs, Source One Parts Center is the best choice for genuine components that enhance the performance and safety of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
14
FMSI
1443
Shoe Quantity
2
GAWR
23K
Shoe Width
4.0 IN
Harmonized System (HS) Code
870830
Friction
BB230 (Bendix Basic)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
18.85 lb
