SB4515X3BA233

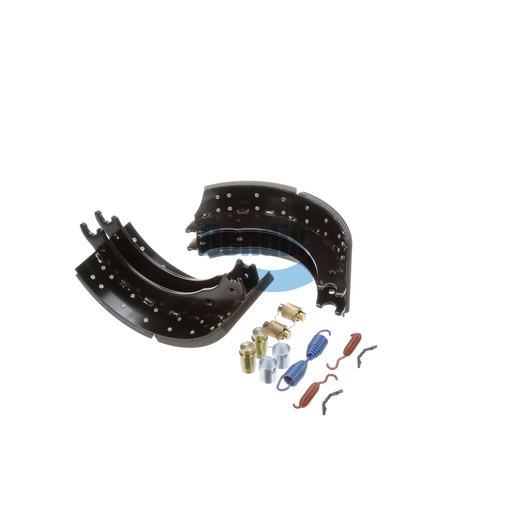

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Shoe Kit is a comprehensive solution for maintaining your truck's braking system, ensuring optimal performance and safety. This kit is designed with high-quality materials that provide superior durability and reliability, making it an ideal choice for heavy-duty applications. Featuring a complete set of components, it simplifies the installation process and ensures that your brakes function efficiently. By replacing worn-out shoes with this quality kit, you enhance your vehicle's braking capabilities, contributing to safer driving conditions. Source One Parts Center is the go-to source for genuine Bendix OEM parts, guaranteeing the best products for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
FMSI
4515
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
32 lb
