SB4692FC2BA200
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

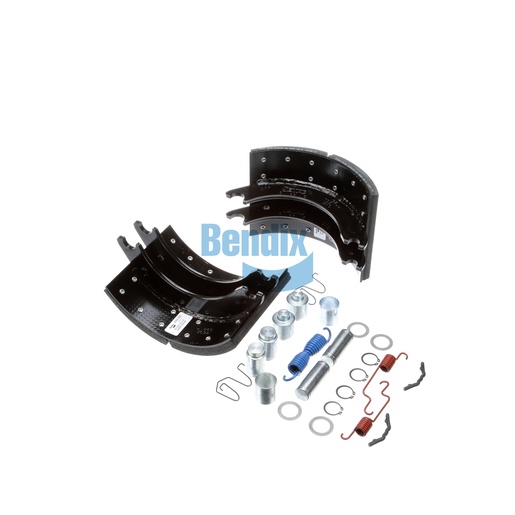

The Bendix Brake Shoe Kit is a crucial component for ensuring optimal performance and safety in your vehicle's braking system. This comprehensive kit is designed for heavy-duty applications, featuring high-quality materials that guarantee durability and reliable stopping power. Weighing 13.8 kg (30.47 lb), this kit is built to withstand the demanding conditions of commercial trucking, ensuring your vehicle operates safely and efficiently. The advanced shoe design minimizes wear and tear, extending the lifespan of your braking components. By investing in this Bendix Brake Shoe Kit, you are securing the effectiveness and safety of your braking system. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive top-quality products tailored to your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
Number of Rivets
20
GAWR
20K
FMSI
4692
Shoe Width
7.5 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 12.25 IN
Weight
30.47 lb
