SB4702QBB230
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

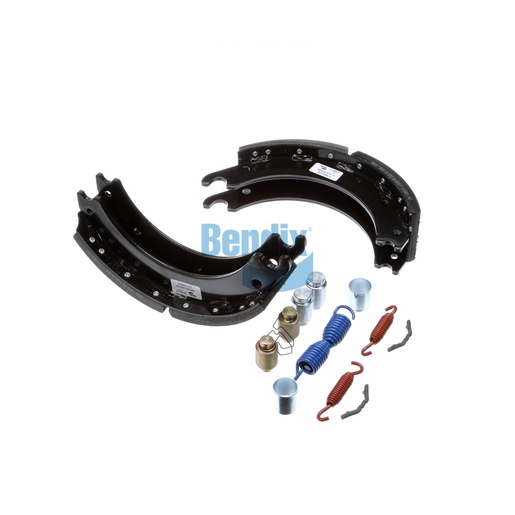

The Brake Shoe Kit offers an outstanding solution for heavy-duty braking needs, ensuring superior performance and safety. Constructed with high-quality stamped steel and coated with E-Coat, this kit is built to last, providing essential corrosion resistance. Designed for a drum size of 15.0 inches and a shoe width of 4.0 inches, it provides an ideal fit for a variety of commercial vehicles. With a Gross Axle Weight Rating (GAWR) of 23K and featuring 16 rivets for secure attachment, this kit includes two shoes and all necessary hardware for easy installation. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that your vehicle is equipped with reliable components.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
23K
Shoe Width
4.0 IN
FMSI
4702
Harmonized System (HS) Code
870830
Friction
BB230 (Bendix Basic)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 15.0 IN
Weight
25.28 lb
