SB4707Q1160

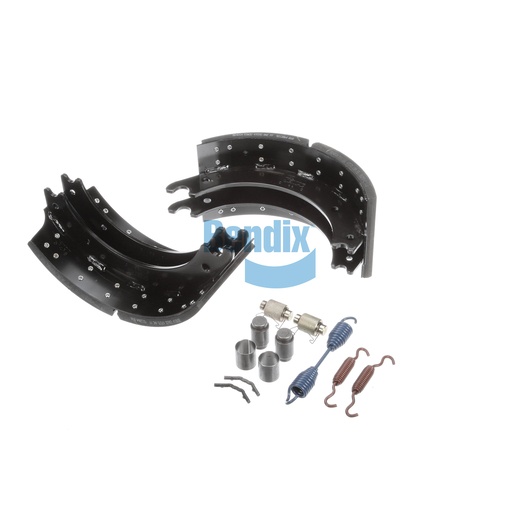

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Shoe Kit is engineered for optimal braking performance in commercial vehicles, featuring a drum size of 16.5 inches and a shoe width of 7.0 inches. This kit is designed to accommodate a GAWR of 23K, making it suitable for heavy-duty applications. The construction includes stamped steel shoes coated with E-Coat for enhanced durability and corrosion resistance. Each kit is complete with all necessary hardware, ensuring a hassle-free installation process. Source One Parts Center is your premier source for genuine Bendix OEM parts, providing the reliability and quality your commercial vehicles demand.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Cautionary Note(s)
Actual lining material installed is ES1100 / ES600
Shoe Coating
E-Coat
Friction
ES1160
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
41.51 lb
