SB4707QBA200
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

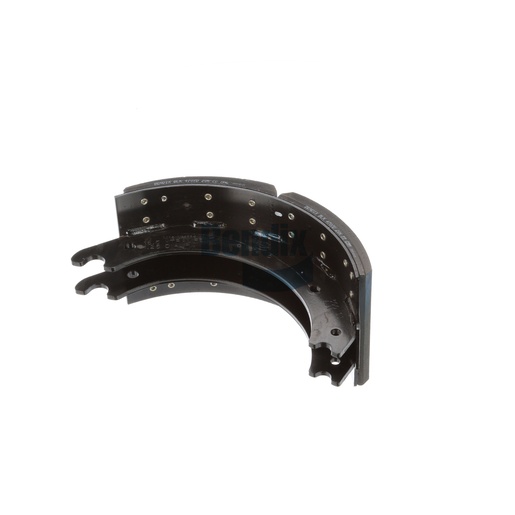

This high-quality Bendix brake shoe kit delivers superior performance and safety for heavy-duty vehicles. Crafted from stamped steel, the shoes feature an advanced E-coat finish that enhances durability and resistance to corrosion. With a drum size of 16.5 inches and a shoe width of 7.0 inches, this kit includes all necessary hardware for a hassle-free installation. Ideal for heavy loads, this brake shoe kit promotes effective stopping power, ensuring the safety of drivers and cargo. For those seeking reliable solutions, Source One Parts Center is the best place to find genuine Bendix OEM parts that meet the demands of the commercial trucking industry.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA200 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
38.5 lb
