SB4707QBA201

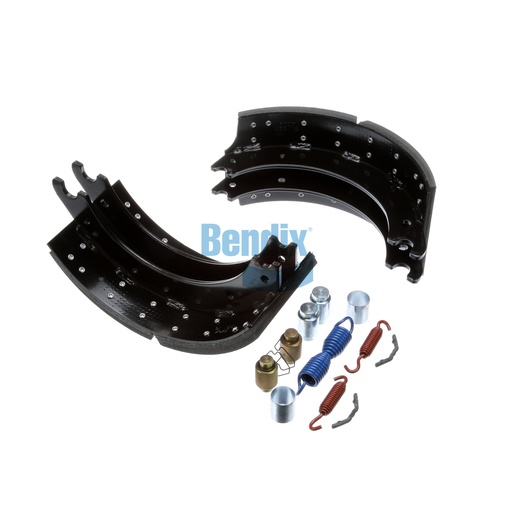

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is expertly crafted for heavy-duty commercial vehicles, offering unmatched stopping power and durability. This kit features high-performance brake shoes made from stamped steel, treated with an E-Coat finish to resist corrosion and wear. Designed for a maximum gross axle weight rating (GAWR) of 20K, it ensures safe and effective braking under the toughest conditions. The kit includes two brake shoes, each equipped with 28 rivets for superior structural integrity, and is designed to fit a drum size of 16.5 inches with a shoe width of 7.0 inches. All necessary hardware is included, making installation a breeze for truck maintenance professionals. For all your Bendix OEM parts needs, Source One Parts Center is the best choice, providing genuine components that guarantee long-lasting performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Cautionary Note(s)
BA232R Shoes are approved for vehicles up to 59K lbs GVWR
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.99 lb
