SB4707QBA202R

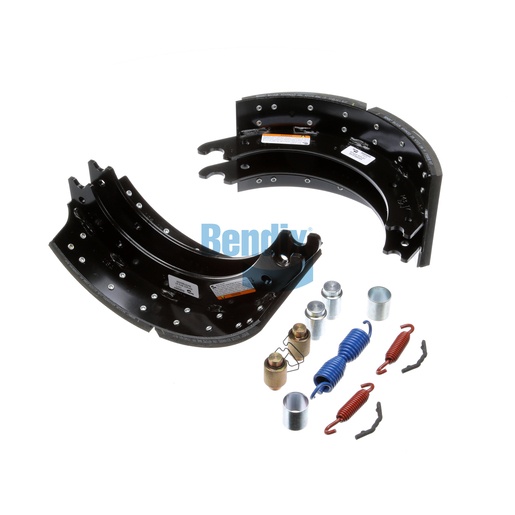

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Brake Shoe Kit is designed to deliver high-performance braking in demanding environments. With a drum size of 16.5 inches and a shoe width of 7.0 inches, the kit supports a GAWR of 20K, making it suitable for heavy-duty applications. Constructed from stamped steel and coated with E-Coat, the shoes provide excellent durability and corrosion resistance. Each kit includes all necessary hardware for a straightforward installation, allowing for quick maintenance. Source One Parts Center is your best choice for genuine Bendix OEM parts, providing the quality and performance you can trust for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA202R (Bendix Advanced - RSD)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
39.02 lb
