SB4707QBA233BUS

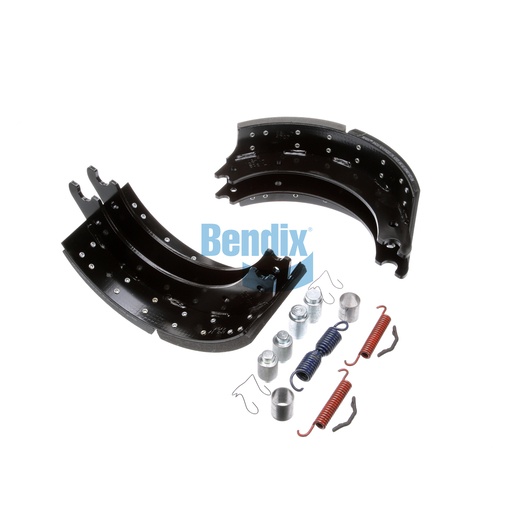

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix brake shoe kit offers exceptional stopping power and durability, making it an essential component for heavy-duty commercial vehicles. Designed with advanced materials, these shoes ensure reliable performance and extended service life, reducing the frequency of replacements. The kit includes all necessary hardware for installation, ensuring a quick and efficient setup. With a focus on safety and efficiency, these brake shoes provide consistent braking performance under varying conditions. For those seeking genuine Bendix OEM parts, Source One Parts Center is the top choice, delivering quality and reliability every time.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4707
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
38.9 lb
