SB4709E21180

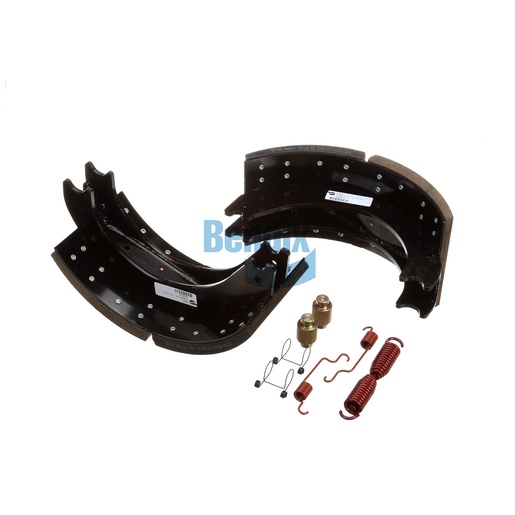

Brake Shoe Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is designed to provide exceptional stopping power and reliability for commercial vehicles. With a gross axle weight rating of 23K, this kit features stamped steel construction for maximum durability, ensuring that your brakes perform optimally under heavy loads. The E-Coat finish not only enhances the aesthetic appeal but also provides protection against corrosion, extending the life of the shoes. The kit includes all necessary hardware, making installation straightforward and hassle-free. By ensuring your brake system is in top condition, you enhance the safety and efficiency of your vehicle. For purchasing high-quality Bendix OEM parts, Source One Parts Center is the preferred choice, offering a wide range of products backed by expert support.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES1180
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
42.81 lb
