SB4709E2420

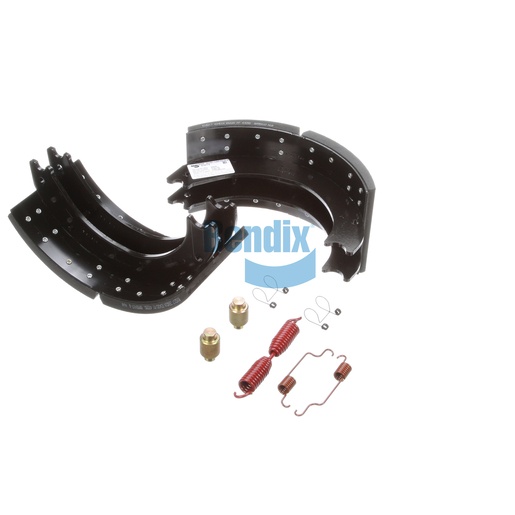

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Transform your braking experience with the Bendix Brake Shoe Kit, specifically crafted for foundation drum brakes. This reliable kit boasts advanced ES420 friction material that delivers exceptional stopping power, making it ideal for heavy-duty commercial vehicles. Featuring a robust design with a shoe width of 7.0 inches and a drum size of 16.5 inches, it can handle a Gross Axle Weight Rating (GAWR) of 20K, ensuring safety and performance in demanding conditions. The stamped steel shoes come with an E-Coat finish for enhanced corrosion resistance, featuring two shoes with 28 rivets for secure attachment, and all necessary hardware included for ease of installation. Weighing 40.98 lbs, this kit guarantees consistent braking performance, contributing to greater vehicle control and safety on the road. When it comes to sourcing genuine Bendix OEM parts for commercial vehicles, Source One Parts Center is the premier destination, offering unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES420
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
40.98 lb
