SB4709E2600
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

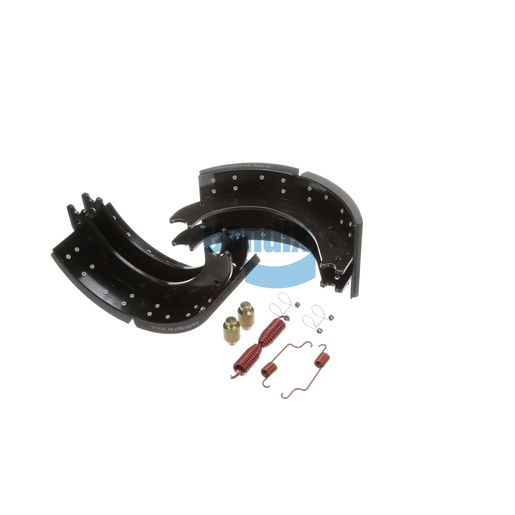

The Brake Shoe Kit is a reliable choice for commercial vehicles, designed to deliver enhanced braking performance and safety. Featuring the ES600 friction material, this kit is crafted for a drum size of 16.5 inches and a shoe width of 7.0 inches, making it suitable for heavy-duty applications with a Gross Axle Weight Rating (GAWR) of 23K. Each kit includes two robust stamped steel shoes, complete with a protective E-Coat finish to resist corrosion and extend the lifespan of the product. Weighing in at 39.0 pounds, this kit is essential for maintaining optimal braking efficiency. Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES600
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
39 lb
