SB4709E2BA201

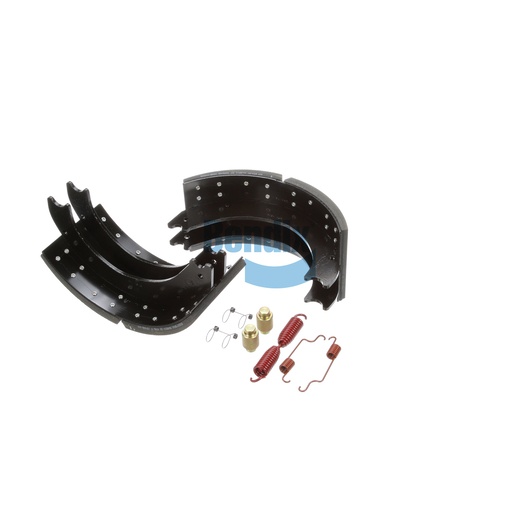

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit combines cutting-edge technology and superior materials to deliver outstanding braking performance for heavy-duty applications. This kit includes all necessary components for a complete brake shoe replacement, ensuring safety and compliance with industry standards. Designed for durability, the shoe kit effectively reduces wear on brake components while enhancing stopping power. Its robust construction allows it to withstand harsh conditions, making it an ideal solution for commercial vehicles. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best resource, providing quality you can rely on.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
20K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA201 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
37.9 lb
