SB4709E2BA233
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

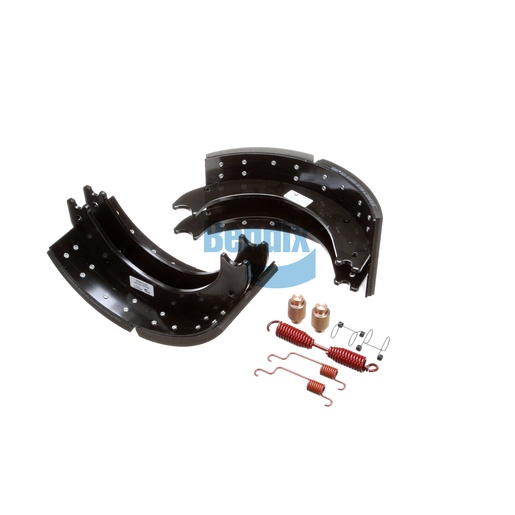

The Bendix brake shoe kit is engineered for superior performance, designed specifically for heavy-duty applications in commercial vehicles. With a drum size of 16.5 inches and a shoe width of 7.0 inches, this kit includes two durable shoes made of stamped steel with an E-coat finish that resists corrosion. The advanced friction materials used ensure excellent stopping power, contributing to overall vehicle safety. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring that your vehicles are equipped with the highest quality components for optimal performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
38.36 lb
