SB4709S21180

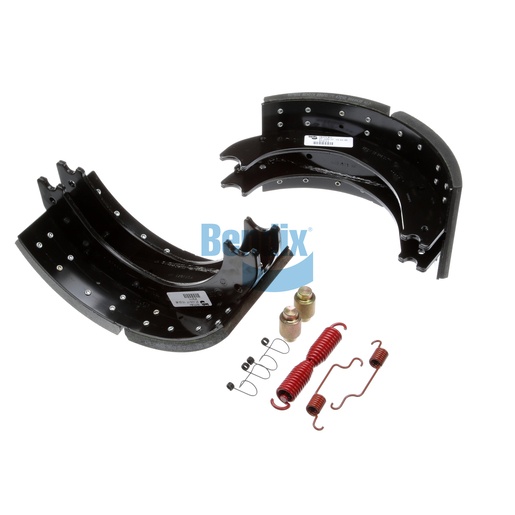

Brake Shoe Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Shoe Kit is crafted for exceptional durability and performance, making it an indispensable part of your commercial vehicle's braking system. Weighing 19.8 kg, this kit is designed to handle heavy loads and provide reliable stopping power under demanding conditions. Its high-quality materials ensure optimal friction and heat dissipation, reducing wear on the brake components and extending their lifespan. The kit includes all necessary hardware for easy installation, helping to minimize maintenance time. Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring you get the quality you need for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
28
FMSI
4709
Shoe Width
7.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES1180
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
43.65 lb
