SB4715Q600
Brake Shoe Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

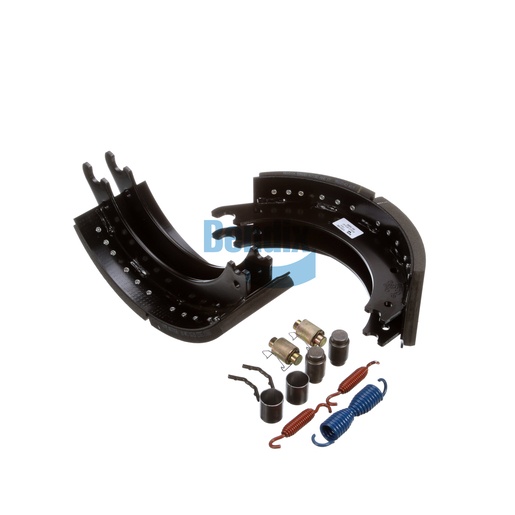

The Bendix Brake Shoe Kit is designed to enhance your commercial vehicle's braking performance, providing reliable stopping power and safety. This kit features advanced friction materials and a durable PermaGuard coating, ensuring longevity and resistance to wear. Weighing 16.2 kg (35.75 lb), it is engineered for easy installation, making maintenance straightforward for fleet operators. The comprehensive kit includes all necessary hardware, allowing for quick replacements and minimal downtime. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best option for quality and service.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
24
FMSI
4715
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES600
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
35.75 lb
