SB4719E2BA233HC
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

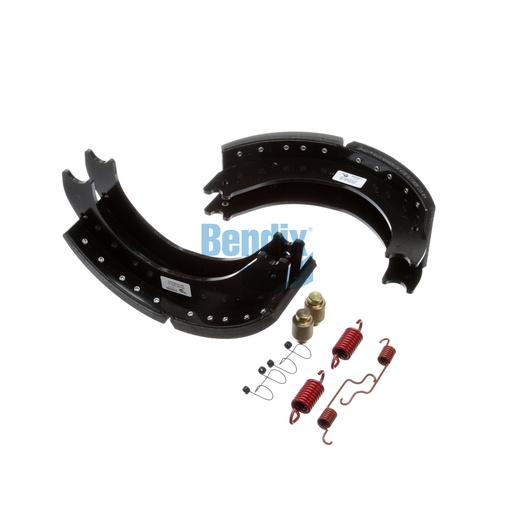

The Bendix Brake Shoe Kit is expertly designed to deliver superior performance and reliability for your commercial vehicle's braking system. This kit features two shoes made from high-quality stamped steel, ensuring durability and a long service life under demanding conditions. With a net weight of 14.2 kg, the kit is engineered for optimal performance, helping to reduce wear on your brake system and improve stopping power. The included hardware ensures an easy installation process, allowing you to get back on the road quickly and safely. For those in need of genuine OEM parts, Source One Parts Center is the ultimate destination for Bendix components, guaranteeing quality and performance.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
16
Shoe Quantity
2
GAWR
23K
FMSI
4719
Shoe Width
5.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
31.2 lb
