SB4725E2BA233
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

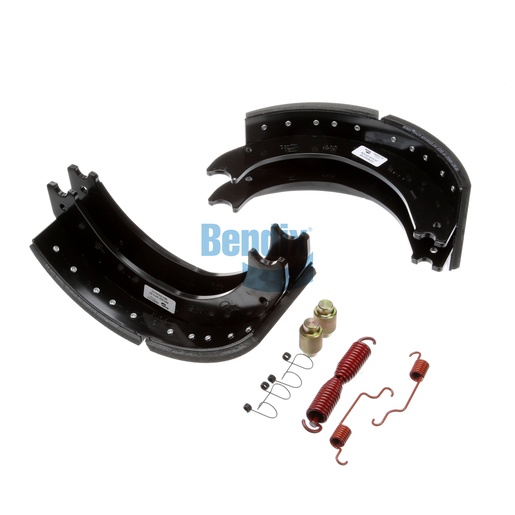

The Bendix brake shoe kit is specifically designed to meet the demands of heavy-duty braking applications. Featuring a drum size of 16.5 inches and a shoe width of 6.0 inches, this kit includes two high-quality stamped steel shoes coated with E-coat for enhanced durability. The advanced friction material provides excellent stopping power, ensuring safety and performance in all conditions. With all necessary hardware included, installation is straightforward and efficient. For those seeking the best in quality and reliability, Source One Parts Center is the top destination for genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Number of Rivets
14
Shoe Quantity
2
GAWR
23K
FMSI
4725
Shoe Width
6.0 IN
Harmonized System (HS) Code
870830
Friction
BA233 (Bendix Advanced)
Shoe Coating
E-Coat
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
34.75 lb
