SB4726E21180

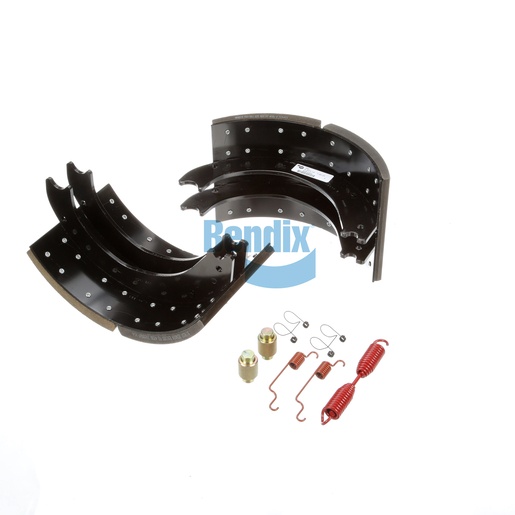

Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Shoe Kit is engineered to provide superior stopping power and reliability for your commercial vehicle. Designed for foundation drum brakes, this kit features shoes made from stamped steel with an advanced E-Coat finish for enhanced durability and corrosion resistance. With a friction rating of ES1180 and compatibility with a drum size of 16.5 inches, this kit is perfect for heavy-duty applications with a GAWR of 23,000 lbs. Each kit includes all necessary hardware to ensure a seamless installation process. Trust Source One Parts Center for your Bendix parts, where you can find genuine OEM solutions to keep your vehicle operating safely and effectively.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
FMSI
4726
Shoe Width
8.625 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES1180
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
39.04 lb
