SB47X8E2600
Brake Shoe Kit
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

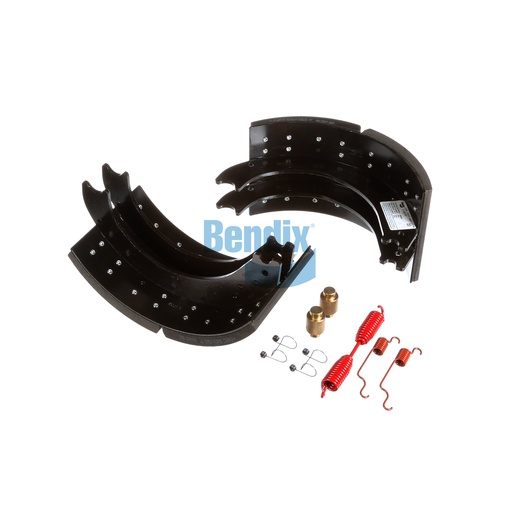

The Bendix Brake Shoe Kit is expertly designed for foundation drum brakes, providing reliable stopping power for heavy-duty vehicles. This kit includes high-quality stamped steel shoes with advanced friction materials, ensuring optimal performance and durability. Weighing 19.1 kg, this kit is engineered to handle the rigorous demands of commercial driving. The E-Coat finish offers superior corrosion resistance, which helps to prolong the life of the shoes and minimize maintenance needs. Perfect for fleet operations looking for reliable braking solutions, this brake shoe kit will keep your vehicles performing safely and efficiently. Source One Parts Center is your trusted source for genuine Bendix OEM parts, guaranteeing high-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-007: Shoe - Brake, Position Not Specified
Shoe Quantity
2
GAWR
23K
Number of Rivets
32
Shoe Width
8.0 IN
Harmonized System (HS) Code
870830
Shoe Coating
E-Coat
Friction
ES600
Shoe Material
Stamped Steel
Country of Origin
United States
Hardware Included
Yes
Drum Size
Ø 16.5 IN
Weight
42 lb
