$86.95
$104.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

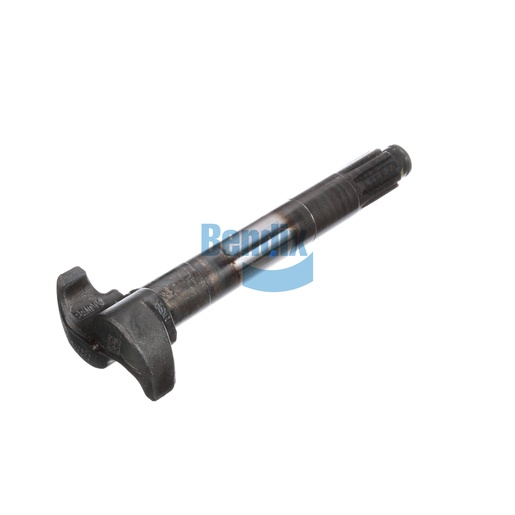

The Camshaft from Bendix is a vital element of your truck's braking system, designed to ensure accurate operation and responsiveness of the brake mechanism. With a counterclockwise rotation and a robust design, this camshaft guarantees optimal brake performance under various conditions. Weighing 5.9 kg (12.97 lb), it is built to withstand the rigors of heavy-duty use and harsh environments. The camshaft features precise engineering, including a diameter of 1.50 inches and a spline diameter of 1.50 inches with 10 splines, making it compatible with a range of brake systems. Its reliable performance directly contributes to enhanced vehicle safety and efficiency. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best choice, ensuring that your commercial vehicles operate at their best.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.687
Camshaft Under Head Length [IN]
10.897
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Head Type
Style B - Extended Service
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.97 lb
