807859N

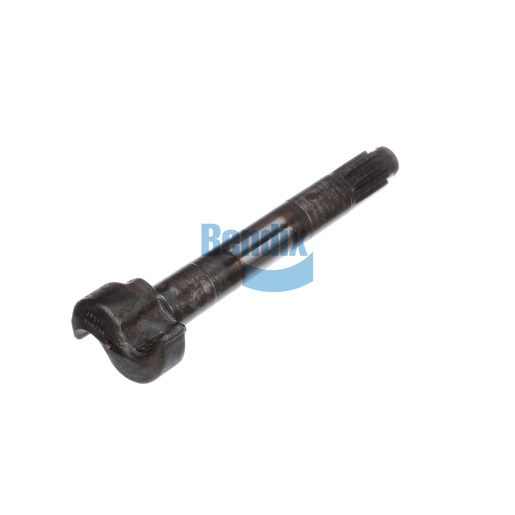

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft is a critical element in the foundation drum brake system of commercial trucks, essential for effective brake application and safety. Weighing 3.4 kg, this robust part is designed to withstand the demands of heavy-duty use, ensuring reliable performance even under extreme conditions. Manufactured in the United States, the camshaft is engineered for precision and durability, providing optimal modulation of brake force for improved stopping power. Its quality construction helps reduce wear on brake components, extending the lifespan of your braking system. Fleet managers seeking to enhance their vehicles' braking performance will find this camshaft indispensable. Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring you receive top-quality components tailored to your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.687
Camshaft Under Head Length [IN]
10.897
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.4 lb
