808233N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

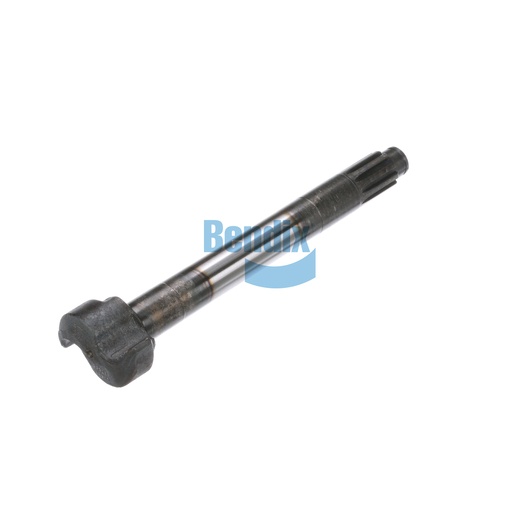

The Bendix Camshaft is designed to provide reliable performance in foundation drum brakes, ensuring optimal engagement of brake shoes for effective stopping power. Weighing 3.9 kg (8.6 lb), this camshaft is engineered for durability, making it suitable for heavy-duty applications. Its clockwise rotation and high-quality construction ensure that it can withstand the stresses of commercial use while maintaining the precision required for safe operation. Regular maintenance and timely replacement of components like the camshaft are essential for maximizing the efficiency and safety of your braking system. For the best in genuine Bendix OEM parts, Source One Parts Center is the perfect choice, ensuring your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
12.937
Camshaft Under Head Length [IN]
13.147
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
8.6 lb
