$82.95
$99.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

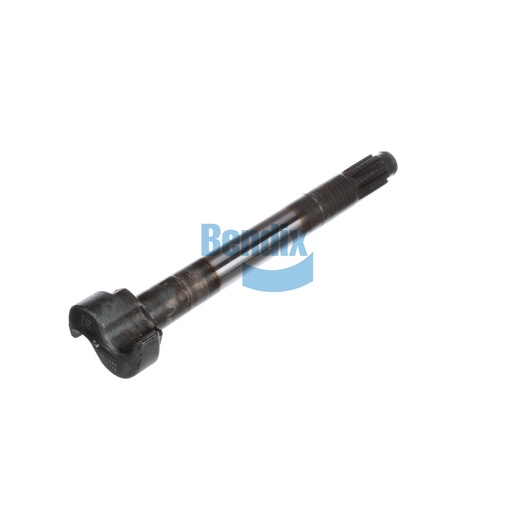

The Bendix Camshaft is an integral part of the foundation drum brake system, designed to efficiently convert the linear motion from the brake actuator into rotational motion for effective braking. This camshaft is meticulously engineered to meet the rigorous demands of commercial vehicles, featuring a robust construction that ensures durability and reliability under heavy-duty conditions. With a clockwise rotation and compatibility with Eaton brake systems, this camshaft plays a vital role in maintaining optimal brake performance and safety. Its design includes specific dimensions and spline configurations that facilitate seamless integration into existing systems, ensuring efficient operation. By choosing a high-quality camshaft, you enhance the overall braking efficiency of your vehicle, contributing to safer road travel. Source One Parts Center stands out as the best source for genuine Bendix OEM parts, providing reliable solutions for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.124
Camshaft Under Head Length [IN]
13.210
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Axle Type
Drive
Brake Manufacturer
Eaton
Head Type
Style B - Extended Service
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.97 lb
