808410N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

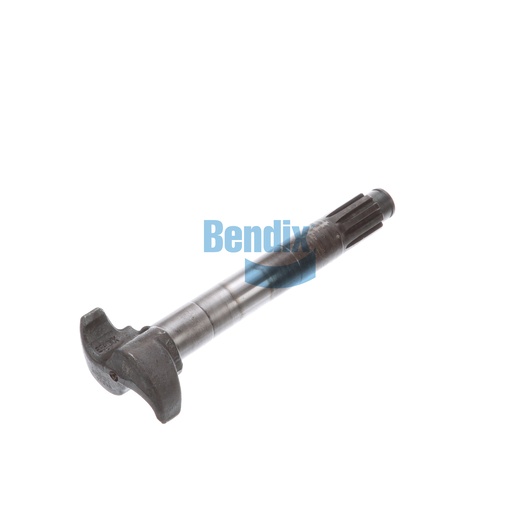

The Camshaft from Bendix is an essential part of the foundation drum brake system, designed to optimize braking performance. This camshaft features a counterclockwise rotation and is compatible with Ø 16.5-inch brake systems, ensuring efficient force transmission for effective braking action. Its durable construction is built to withstand harsh environments, making it ideal for heavy-duty applications. With a lightweight design, installation is simple and straightforward, providing an excellent solution for maintaining your vehicle's braking system. Source One Parts Center is your best option for high-quality Bendix OEM parts, offering authentic products and exceptional customer service.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.343
Camshaft Under Head Length [IN]
10.553
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.99 lb
