$86.95
$104.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

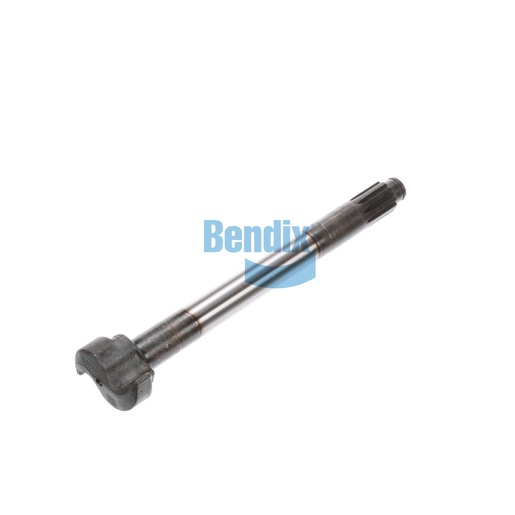

The Camshaft is an integral part of your truck's braking system, specifically designed for optimal performance in drum brake applications. This component features a clockwise rotation and is compatible with various brake sizes, providing efficient power transfer from the brake pedal to the brake shoes. With a net weight of 4.2 kg (9.35 lb), it is lightweight yet robust, ensuring it can withstand the demands of heavy-duty use. The precise construction of this camshaft enables it to fit seamlessly within your braking system, enhancing overall braking efficiency and safety. This camshaft is engineered to provide reliable performance, making it an essential component for any maintenance or upgrade of your braking system. Source One Parts Center offers the best genuine Bendix OEM parts, providing you with quality and reliability for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
14.937
Camshaft Under Head Length [IN]
15.147
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
9.35 lb
