$74.95
$89.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

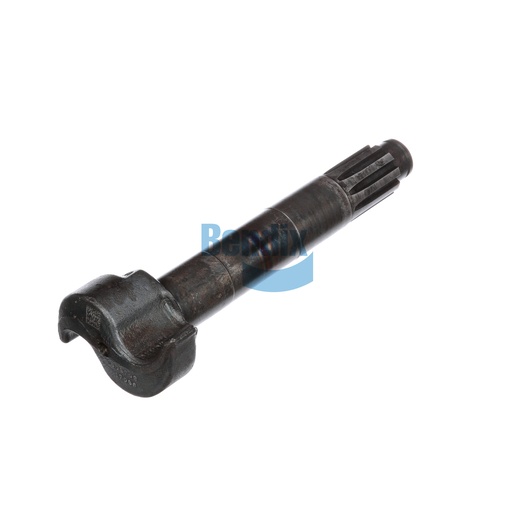

The Bendix Camshaft is an essential component that plays a pivotal role in the functionality of drum brakes in commercial vehicles. Engineered for clockwise rotation and precision performance, this camshaft measures 11.23 inches in length, ensuring compatibility with a variety of braking systems. Its robust construction allows it to withstand the high demands of heavy-duty applications, providing reliable and consistent braking power. The camshaft's design is optimized for efficiency, ensuring that the braking mechanism engages smoothly and effectively, enhancing overall vehicle safety. By integrating the Bendix Camshaft into your braking system, you are ensuring that your vehicle operates at peak performance. For high-quality Bendix OEM parts, Source One Parts Center is the go-to source, ensuring you have access to reliable components tailored for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
8.749
Camshaft Under Head Length [IN]
8.959
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.99 lb
