$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

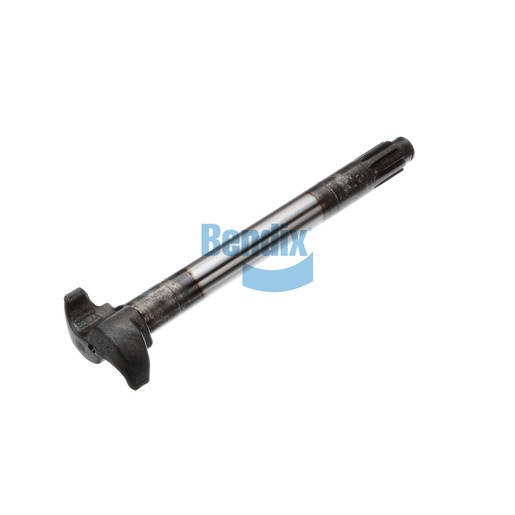

The Camshaft is a vital part of the braking system, ensuring effective brake application and enhancing overall vehicle safety. With a length of 14.750 inches, this camshaft is engineered for precise performance, providing the necessary leverage to activate the brakes efficiently. Its counterclockwise rotation design allows for seamless integration into various braking systems, ensuring reliable operation under heavy loads. Weighing 5.9 kg, this robust camshaft is built to endure the stresses of rigorous use, making it an essential component for maintaining optimal braking performance. Regular inspections and timely replacements are crucial for vehicle safety and performance. For those in search of high-quality Bendix OEM parts, Source One Parts Center is the best place to find reliable components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
14.750
Camshaft Under Head Length [IN]
14.960
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.99 lb
