809860N

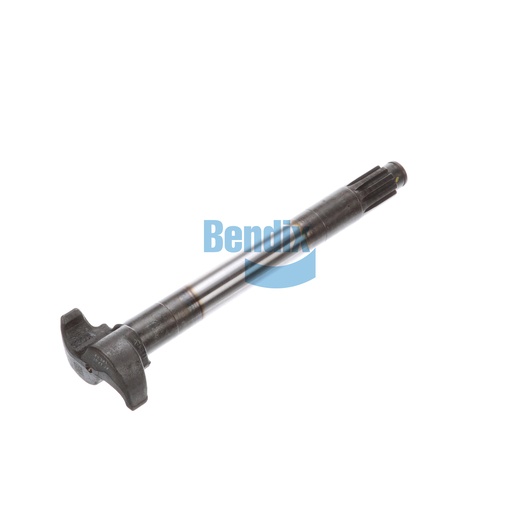

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Experience enhanced braking reliability with the Bendix Camshaft, designed for foundation drum brakes in commercial vehicles. This robust component ensures precise actuation of the brake shoes, allowing for effective stopping power under varying load conditions. Engineered to withstand the demands of heavy-duty applications, this camshaft features a counterclockwise rotation and is compatible with a range of brake sizes. Weighing 8.84 lbs, it is built for durability, ensuring that it performs consistently over time. Regular maintenance of the camshaft is essential for optimal braking performance and safety. Source One Parts Center stands out as the best source for genuine Bendix OEM parts, providing quality components that enhance the reliability of your fleet.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
14.000
Camshaft Under Head Length [IN]
14.210
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
8.84 lb
