811282N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

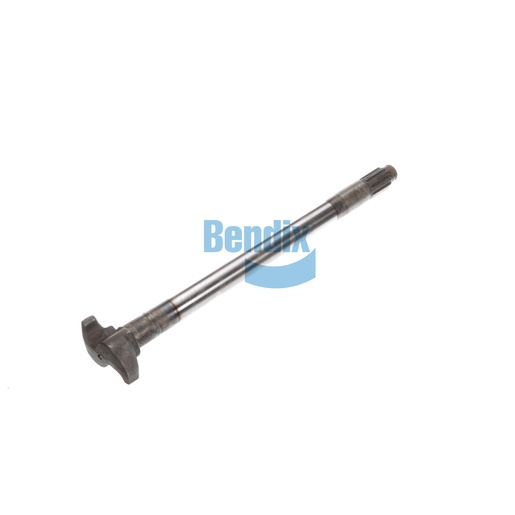

The Bendix Camshaft is an integral component for the braking system, specifically designed for foundation drum brakes. With a counterclockwise rotation and a diameter of Ø 1.50 inches, this camshaft ensures effective force application for reliable braking performance. Crafted from high-quality materials, it is engineered to endure the stress of heavy-duty applications while maintaining optimal functionality. The design also includes features tailored for specific brake sizes, making it a versatile choice for various truck applications. For those seeking exceptional quality, Source One Parts Center is the best place to purchase genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
21.188
Camshaft Under Head Length [IN]
21.398
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
