811608N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

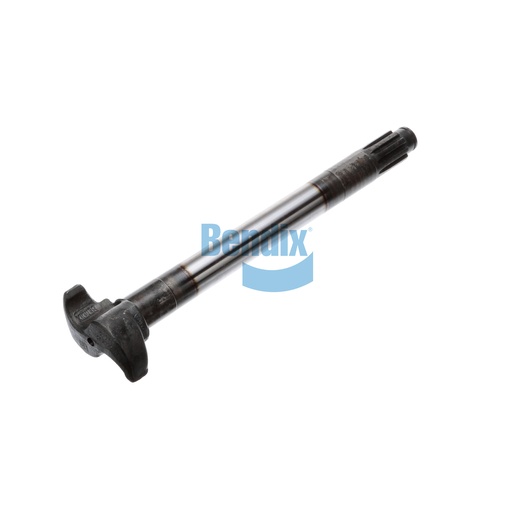

The Camshaft from Bendix is a critical component for foundation drum brakes, expertly designed for precise and reliable braking performance. It features a counterclockwise rotation and is compatible with brake sizes of 16.5 inches, ensuring optimal force application during braking. Weighing 4.4 kg, it offers a balance of strength and manageability, making it easy for technicians to handle during installation. The camshaft is manufactured in the United States, adhering to strict quality control standards, ensuring it meets the rigorous demands of commercial vehicles. For those in need of genuine Bendix OEM parts, Source One Parts Center is the premier destination for high-quality components that enhance vehicle safety and performance.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
15.656
Camshaft Under Head Length [IN]
15.866
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
9.79 lb
