813490N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

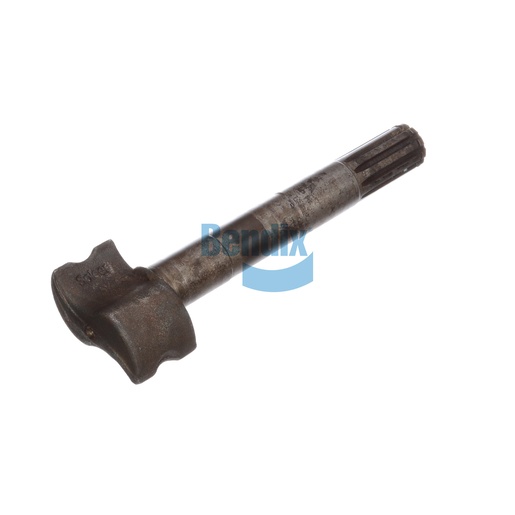

The Camshaft is a critical component in the foundation drum brake system, ensuring effective brake application and vehicle safety. This camshaft features a counterclockwise rotation and is designed to fit various brake systems with a spline diameter of Ø 1.25 inches. Weighing only 2.1 kg, it is lightweight yet robust enough to handle the demands of commercial vehicle braking. The camshaft's design enables smooth operation and precise alignment, essential for optimal performance. For those seeking genuine Bendix OEM parts, Source One Parts Center provides a reliable source for quality components that enhance the safety and efficiency of your vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
8.494
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Head Type
Style J - Spicer Eaton Extended Service (SAP)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.63 lb
