813495N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

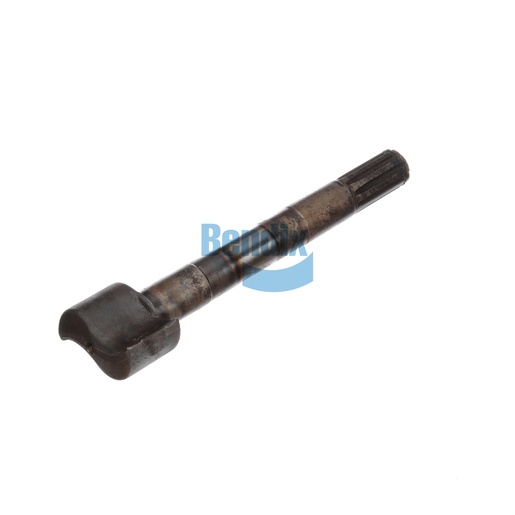

The Bendix Camshaft is an integral component of the foundation drum brake system, designed to provide efficient and reliable operation. Manufactured in the United States, this camshaft features a clockwise rotation and a standard head type, ensuring compatibility with a variety of braking applications. With a length of 9.895 inches and a spline diameter of 1.25 inches, it effectively transfers torque to the brake shoes for consistent braking performance. Weighing approximately 12.99 lbs, its robust construction is ideal for heavy-duty use, making it a perfect choice for commercial vehicles. The camshaft's design incorporates nylon bushings that enhance smooth operation and reduce wear, prolonging the service life of your braking system. By choosing the Bendix Camshaft, you are investing in a component that prioritizes performance and safety. For high-quality Bendix OEM parts, Source One Parts Center is your go-to source, delivering reliability and excellence for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Harmonized System (HS) Code
870830
Camshaft Length (Head to Retaining Ring Groove) [IN]
9.895
Rotation
Clockwise (CW)
Head Type
Standard
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
12.99 lb
