813499N

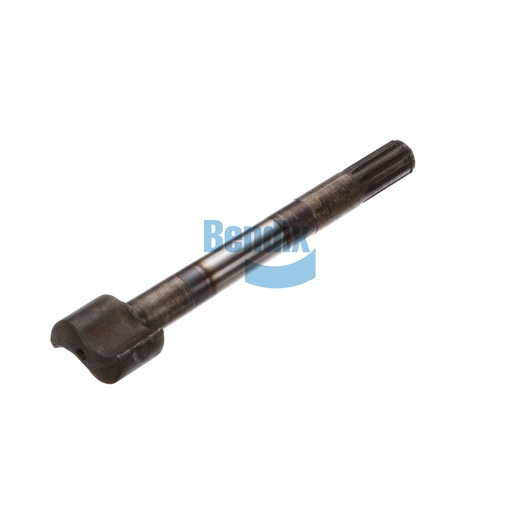

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft is an integral part of the brake system, specifically designed to ensure optimal performance and reliability of drum brakes in commercial vehicles. With a clockwise rotation and a head type standard, this camshaft guarantees precise operation, translating the force applied at the brake pedal into effective braking power. Weighing 5.9 kg, it is crafted from durable materials to withstand the stresses of heavy-duty applications, ensuring longevity and consistent performance. The camshaft's unique design includes a spline diameter of 1.25 inches with 10 splines, allowing for a secure fit and easy installation. Regular maintenance and timely replacement of the camshaft are essential for maintaining the overall safety and efficiency of your vehicle's braking system. For those in search of authentic Bendix OEM parts, Source One Parts Center is the trusted source to meet your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
11.226
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Head Type
Standard
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
12.99 lb
