813690N

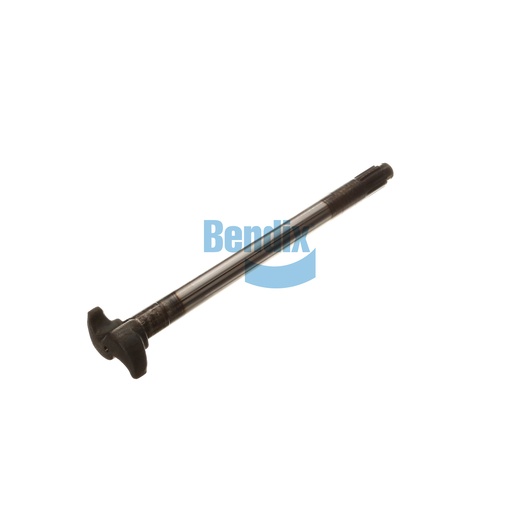

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is designed for optimal performance in heavy-duty braking applications, providing the necessary leverage to activate your truck's brakes efficiently. This counterclockwise rotating camshaft is specifically made for 16.5-inch brake sizes, ensuring a perfect fit and reliable operation. With a length of 19.687 inches, it meets the demands of various commercial vehicle setups while delivering consistent braking performance under diverse conditions. The durable materials and precision engineering of this camshaft contribute to its longevity and effectiveness, making it an essential component for maintaining your vehicle's safety and performance. For your next repair or upgrade, trust Source One Parts Center as your go-to source for genuine Bendix OEM parts, ensuring you get the best quality available.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
19.687
Camshaft Under Head Length [IN]
19.897
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
10.78 lb
