814074N

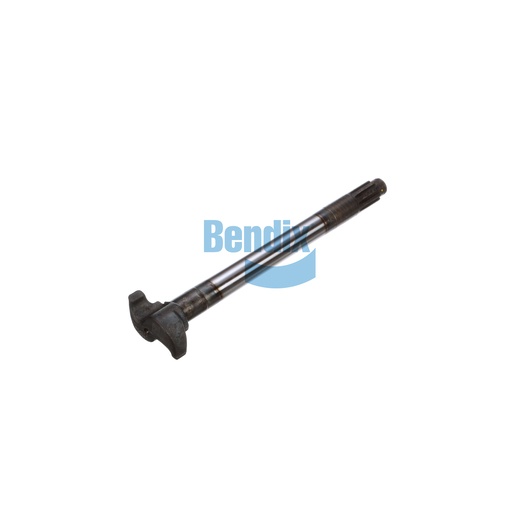

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is an integral part of the foundation drum brake system, designed to provide efficient and reliable actuation of the brake components. With its counterclockwise rotation and compatibility with Eaton brake systems, this camshaft delivers exceptional performance in heavy-duty applications. The robust construction ensures it can withstand the significant forces exerted during braking, promoting longevity and reliability. At a net weight of 4.6 kg, this camshaft is engineered for durability while allowing for easy installation and maintenance. Its precise dimensions, including a spline diameter of 1.50 inches and a brake size of 16.5 inches, ensure compatibility with a range of drum brake systems. By investing in this high-quality camshaft, you contribute to the optimal operation of your braking system, enhancing vehicle safety on the road. For top-quality components, Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring reliability and performance in your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
16.595
Camshaft Under Head Length [IN]
16.805
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
10.23 lb
