816494N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

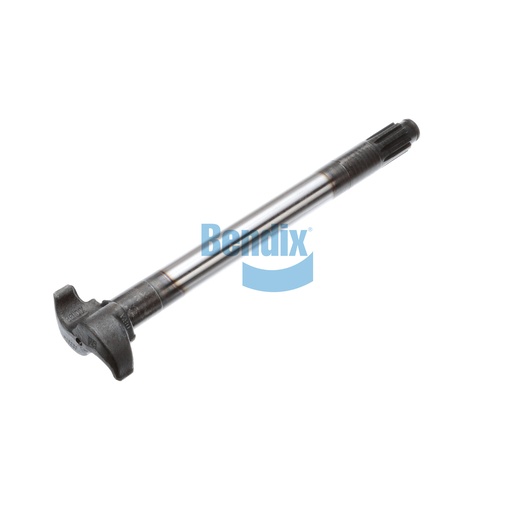

The Bendix Camshaft is designed for reliability and performance in commercial vehicle braking systems. This camshaft features a counterclockwise rotation and is compatible with Eaton brake systems, ensuring effective power transfer for consistent braking performance. With a length of 17.065 inches and a robust construction, it is engineered to withstand the rigors of heavy-duty applications, providing enhanced durability and longevity. The camshaft is essential for maintaining proper brake function, significantly contributing to the safety and control of your vehicle. Source One Parts Center is the prime destination for genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle's braking performance.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
17.065
Camshaft Under Head Length [IN]
17.275
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
