FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

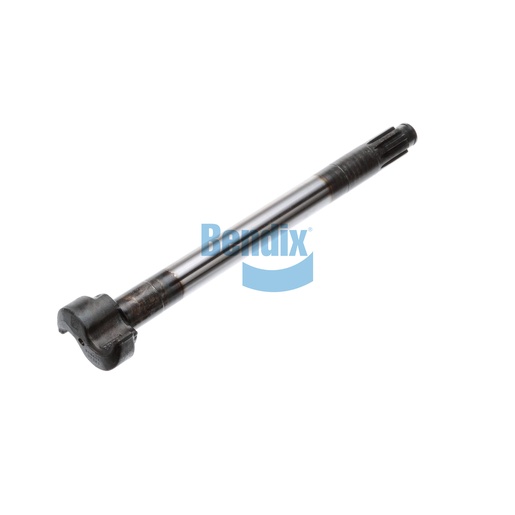

The Camshaft is an integral component of the Bendix foundation drum brake system, designed to ensure effective braking performance and safety for heavy-duty vehicles. With a rotation direction of clockwise and compatibility with a brake size of Ø 16.5 inches, this camshaft is engineered for precision and reliability. Weighing 14.99 lbs, it is crafted from durable materials that can withstand the rigorous demands of commercial use. The camshaft is designed to maintain optimal alignment and functionality, essential for the effective operation of the braking system. Its robust design and OEM specifications make it a trusted choice for fleet operators looking to enhance their vehicle's braking capabilities. This part is crucial for preventing brake fade and ensuring consistent stopping power, contributing to the overall safety of the vehicle. For the best quality Bendix OEM parts, Source One Parts Center is your ideal destination, ensuring your commercial vehicles perform at their best.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
17.065
Camshaft Under Head Length [IN]
17.275
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
