816550N

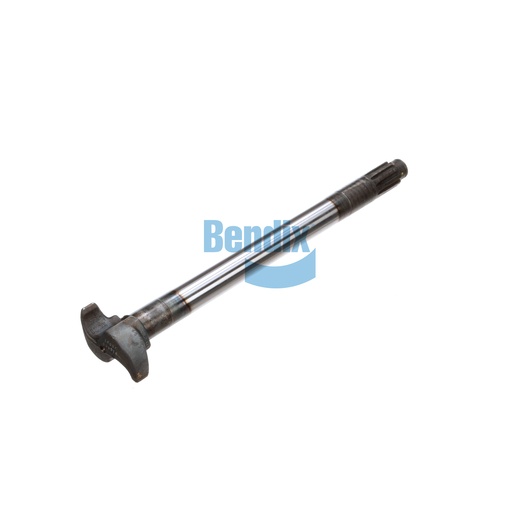

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is an essential component in the foundation drum brake system of commercial vehicles, designed to convert the linear motion of the brake actuator into the rotational motion required for braking. Constructed with precision, this camshaft ensures optimal performance and longevity, effectively maintaining the proper tension and alignment needed for reliable braking functionality. With a diameter at the spider of 1.50 inches and a robust construction, it can withstand the rigors of heavy-duty applications. The camshaft's counterclockwise rotation and specific length dimensions also contribute to its compatibility with various brake systems, particularly those manufactured by Eaton. Investing in a quality camshaft not only enhances the braking efficiency of your vehicle but also promotes safety on the road. For genuine Bendix OEM parts, Source One Parts Center offers a seamless purchasing experience, ensuring you receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
18.625
Camshaft Under Head Length [IN]
18.835
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
